Video nadzor / DVR uređaji / 4K Value/5MP serija / XVR5116H-4KL-I3/T
* Za prikaz cene potrebna je PRIJAVA

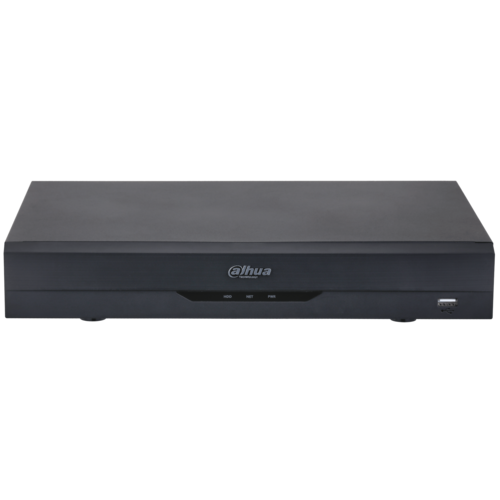

XVR5116H-4KL-I3/T

16+16 kanalni penta-brid, 114fps@4K, 180fps@6MP, 218fps@5MP, 240fps@4K-N/5 MP, 400fps/4M-N/1080P/720P/960H/D1/CIF, WizSense analitika; AcuPick; EPTZ; SMD+; Face detection; Metalno kućište; 1X audio ulaz/izlaz; 1X SATA; RS485; HDMI + VGA; Network

  • 16+16 kanalni stand-alone penta-brid DVR (analog + HDCVI + AHD + TVI + IP)
  • WizSense serija
  • AI - zaštita perimetra (na do 8 kanala, 10 IVS pravila po kanalu - detekcija i pretraga po osobi/vozilu)
  • AI - detekcija lica - na do 4 kanala, do 10 baza sa do 20.000 lica
  • SMD+ detekcija pokreta (do 16 kanala – analitika sa snimača, do 32 kanala – analitika sa kamera)
  • EPTZ: 1 kanal sa snimača
  • AcuPick do 8 kanala sa snimača
  • AI Coding/H.265+/H.265/H.264+/H.264 video kompresija
  • Kapacitet enkodiranja:
  • Encode Enhancement isključen:
  • Glavni stream: 1 i 9 kanal 4K@(1 fps–15 fps), ostali 4K@(1 fps–7 fps), 1 i 9 kanal 6 MP@(1 fps–20 fps), ostali 6 MP@(1 fps–10 fps), 1 i 9th kanal 5 MP@(1 fps–25 fps), ostali 5 MP@(1 fps–12 fps), 1 i 9th kanal 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps), 4K@(1 fps–8 fps), 4K-N/5 MP@(1 fps-15 fps), 4M-N/ 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps), Sub stream: 960H@(1 fps–15 fps), D1/CIF@(1 fps–25/30 fps)
  • Encode Enhancement uključen:
  • 1, 5, 9, 13 kanal 4K@(1 fps–15 fps), ostali 4K@(1 fps–7 fps), the 1st, 5th, 9th, 13th kanal 6 MP@(1 fps–20 fps), ostali 6 MP@(1 fps–10 fps), the 1st, 5th, 9th, 13th kanal 5 MP@(1 fps–25 fps), ostali 5 MP@(1 fps–12 fps), the 1st, 5th, 9th, 13th kanal 4 MP/3 MP@(1 fps– 25/30 fps), 4 MP/3 MP@(1 fps–15 fps), 4K/6 MP@(1 fps–10 fps), 4K-N/5 MP@(1 fps-15 fps), 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps), Sub stream: 960H@(1 fps–15 fps), D1/CIF@(1 fps–25/30 fps)
  • Dual stream
  • G.711A, G.711U, PCM audio kompresija
  • POS
  • HDCVI audio i alarm
  • Broadcast audio
  • 16 video ulaza
  • VGA izlaz
  • HDMI izlaz (do 4K)
  • 1 audio ulaz/1 izlaz
  • USB x2 (USB 2.0 napred + USB 3.0 nazad) - za lokalni backup i miš
  • RS485
  • Rezolucija/frame rate za snimanje po kameri: 4K@12.5/15/25/30 fps, 6 MP@20 fps, 5 MP@20/25 fps, 4 MP@25/30 fps, 3 MP@25/30 fps, 1080p@25/30 fps, 720p@25/30 fps, 720p@50/60 fps
  • Rezolucija prikaza 1280×720 ili do 3840×2160 (HDMI i VGA)
  • Dual stream
  • 1 SATA port - do 16TB
  • Network port 10/100/1000Mbps
  • CMS (DSS)
  • Web pristup
  • DMSS Softver za iOS i Android platforme
  • P2P podrška
  • Podržava do 16 dodatnih IP kamera (rezolucija do 8MP, ukupni bitrate do 128Mbps) ili do 32 IP kamere
  • Radna temperatura: –10 °C~+55 °C
  • Dimenzije Mini 1U, 325.0mm × 257.1mm × 55.0mm (W×D×H)
  • Masa 1.39kg
  • Napajanje 110-240VAc preko adaptera 12VDc 3A
  • Sertifikacija: CE-LVD: IEC 62368-1:2014, CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014

Detaljnije

Zatvori

Dodaj za uporedjivanje
Još uvek niste izabrali artikle za poređenje Uporedi sve
Pogledaj PDF



Osnovne informacije
Potkategorija DVR uređaji
Naziv artikla XVR5116H-4KL-I3/T
Brend Dahua
Serija 4K Value/5MP serija
Sistem
Procesor Industrial-grade procesor
Operativni sistem Ugrađen Linux
Operativni interfejs Web; Local GUI
Zaštita perimetra
AI performanse snimača za zaštitu perimetra (broj kanala) 8 kanala
Detekcija lica
Atributi lica 6 atributa
AI performanse snimača za detekciju lica(broj kanala) 4 kanala
Audio i video
Analogne kamere ulaz 16 BNC portova
Kamere ulaz 1. CVI:
4K@25/30 fps;
4K@12.5/15 fps;
6 MP@20 fps;
5 MP@25 fps;
5 MP@20 fps;
4 MP@25/30 fps;
1080p@25/30 fps;
720p@25/30 fps;
720p@50/60 fps;

2. TVI:
4K@15 fps;
5 MP(2560 x 1944)@20 fps;
5 MP(2960 x 1665)@20 fps;
4 MP@25/30 fps;
3 MP@25/30 fps;
1080p@25/30 fps;
720p@25/30 fps;

3. AHD:
4K@15 fps;
5 MP@20 fps;
4 MP@25/30 fps;
3 MP@25/30 fps;
1080p@25/30 fps;
720p@25/30 fps
IP kamere ulaz Do 32 kanala
Kapacitet dekodiranja Encode Enhancement disabled:
Main stream:
the 1st, 9th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st, 9th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st, 9th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st, 9th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps);
4K@(1 fps–8 fps); 4K-N/5 MP@(1 fps-15 fps);4M-N/1080p/720p/960H/D1/CIF@(1 fps–25/30 fps);
Sub stream:
960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps);

Encode Enhancement enabled:
Main stream:
the 1st, 5th, 9th, 13th channel 4K@(1 fps–15 fps), others 4K@(1 fps–7 fps);
the 1st, 5th, 9th, 13th channel 6 MP@(1 fps–20 fps), others 6 MP@(1 fps–10 fps);
the 1st, 5th, 9th, 13th channel 5 MP@(1 fps–25 fps), others 5 MP@(1 fps–12 fps);
the 1st, 5th, 9th, 13th channel 4 MP/3 MP@(1 fps–25/30 fps), 4 MP/3 MP@(1 fps–15 fps);
4K/6 MP@(1 fps–10 fps); 4K-N/5 MP@(1 fps-15 fps); 1080p/720p/960H/D1/CIF@(1 fps–25/30 fps);
Sub stream:
960H@(1 fps–15 fps); D1/CIF@(1 fps–25/30 fps)
Dvostruki stream Da
Video bit rate 32 kbps–6144 kbps
Audio sampling 8 kHz, 16 bit
Audio bit rate 64 kbps
Video izlaz HDMI:
3840 × 2160, 1920 × 1080, 1280 × 1024, 1280 × 720;

VGA:
1920 × 1080, 1280 × 1024, 1280 × 720
Multi-screen prikaz When IP extension mode not enabled:
1/4/8/9/16;

When IP extension mode enabled:
1/4/8/9/16/25/36
Podržani uređaji drugih proizvođača Panasonic; Sony; Hanwha; Axis; Arecont; ONVIF
Maksimalna rezolucija 4K
Kompresija
Video kompresija AI Coding; Smart H.265+; H.265; Smart H.264+; H.264
Audio kompresija G.711a; G.711u; PCM
Mreža
Protokoli HTTP; HTTPS; TCP/IP; IPv4; IPv6; RTSP; UDP; NTP; DHCP; DNS; SMTP; UPnP; IP Filter; FTP; DDNS; SNMP; Alarm Server; P2P; Auto Registration; IP Search (Supports IP camera, DVR, NVS, etc.)
Podržane mobilne platforme iOS; Android
Interoperabilnost ONVIF 25.06 (Profile T; Profile S; Profile G); CGI; SDK
Web interfejs Chrome; IE; Safari; Edge; Firefox
Reprodukcija snimka
Režim snimanja General; alarm; motion detection; intelligent; POS
Način pravljenja rezervne kopije USB device;
Network
Alarm
Opšti alarm Motion detection; alarm box; HDCVI alarm; camera external alarm; network alarm; PIR alarm
Alarm za anomalije Error (no disk; disk error; low space; low quota space; network disconnection; IP conflict; MAC conflict); video loss; video tampering; camera offline
inteligentni Alarm Face detection; face recognition; perimeter protection; SMD Plus
Alarm Linkage Record; snapshot (panoramic); IPC external alarm output; audio; buzzer; log; preset; email

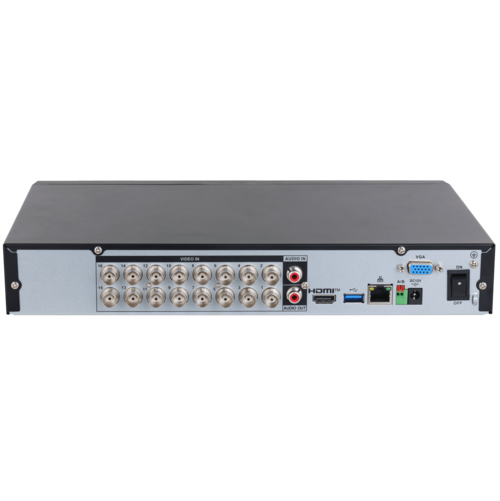

Interfejs
Audio ulaz/izlaz Ulaz:
1 RCA, 16 BNC;

Izlaz:
1 RCA
HDD interfejs 1 SATA port, do 16 TB kapaciteta
RS485 1
USB 2 (napred 1xUSB 2.0 port; pozadi 1xUSB 3.0 port)
HDMI 1
VGA 1
Mrežni port 1 (10/100/1000 Mbps Ethernet port, RJ-45)
Sertifikacije
Sertifikacije CE-LVD: IEC 62368-1:2014;
CE-EMC: EN IEC 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 55032:2015+A11:2020, EN 55035:2017+A11:2020, EN 55024:2010+A1:2015, EN 50130-4:2011+A1:2014
Napajački deo
Napajanje DC12V
Potrošnja < 15 W (Bez HDD-a)
Okruženje
Uslovi rada –10 °C to +55 °C
Uslovi skladištenja –20 °C to +60 °C
Konstrukcija
Tip kućišta Mini 1U
Dimenzije 325.0 mm × 257.1 mm × 55.0 mm
Težina neto (g) 1390
Težina bruto (g) 2060
Tip montaže Desktop
Download sekcija
PDF proizvodjača Download link
Uputstvo za upotrebu Trenutno nema uputstva
