L2+ upravljivi agregacioni switch

L2+ upravljivi 36-portni switch
8 x 10/100/1000 Mbps ports (combo)
16 x 100/1000 Mbps Base-X ports + 8 x 100/1000 Mbps Base-X ports (combo)
4 x 1/10 Gbps Base-X port
Konzolni port
Intelligent Resilient Framework 2
Switching Capacity 336Gbps
Packet Forwarding Rate 96Mpps
Packet Buffer Memory 12 Mbit
MAC Table Size 16K
VLAN Amount 4094 Entries
ARP Table 1K Entries
IPv4 Routing Table 1024 Entries
QoS Queue 8 Entries
Jumbo Frame 10,000 Byte
ACL Table - 1024 Entries (IPV4), 512 Entries (IPV6)
VLAN - Port-based VLAN, MAC-based VLAN, Protocol-based VLAN, QinQ and selective QinQ, VLAN mapping, Voice VLAN, GVRP
DHCP - DHCP client, DHCP snooping, DHCP snooping option82, DHCP relay, DHCP server, DHCP auto-config
Port Aggregation -1GE/10GE port aggregation, Dynamic aggregation, Static aggregation, Cross-device aggregation
Mirroring - Port mirroring, RSPAN
Multicast - IGMP Snooping/MLD Snooping, Multicast VLAN
Dimenzije 440mm × 360mm × 43.6mm
Masa 6kg
Napajanje 100-240Vac do 48W
Opseg radne temeprature 0°C do 45°C

Detaljnije

Zatvori

Dodaj za uporedjivanje

Pogledaj PDF

Download link

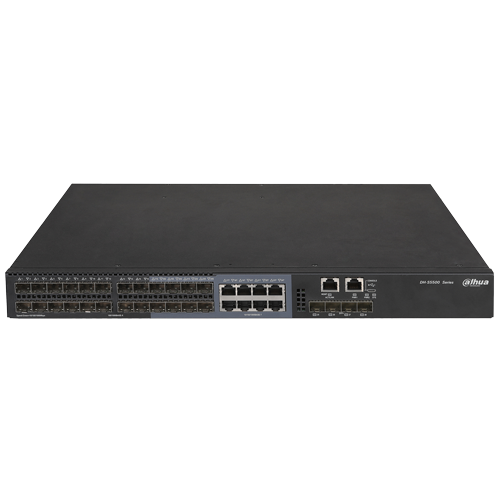

S5500-24GF4XF-E
